*** Update 3/4/2013 ***
I used Brasero on my Fedora 17 and that burned a copy of Clonezilla quite nicely. Hooray! Of course, my clone didn't work, but that's another story.
*** end update ***
Troubles
First, for convenience sake, I burned the first F12 Live CD using my Macbook's Disk Utility. But when I plopped the CD into my desktop, the boot never finished and the DVD player kept humming for about 45 minutes. Something definitely wrong there. Testing on a second PC yielded the same result.
Researching Google, I found that other people had similar problems if the application they burned the CD with burned the CD at too fast a rate. This causes the laser in the DVDs to have difficulty reading the source data. Guess I'll have to reburn that bad boy. I tossed that CD out and thought I'd give Linux tools a try. I didn't know this next stage was going to turn into a two-hour extravaganza.
Burning an ISO in Linux is Easy, No?
Starting from scratch on my Fedora 12 box, I popped in a blank CD and good old Nautilus CD/DVD creator pops up:
I dragged and dropped the ISO onto the blank CD:
Selected "Burn contents"
And POOF..nautilus immediately craps out with a buffer error in dmesg:
[ 78.116252] Buffer I/O error on device sr0, logical block 0

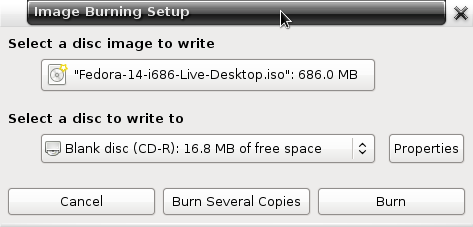

OK, so I guess I won't use that. Next, I try Brasero:
Same result. OK. So let me try cdrecord, from the CDR toolset. Things seems to go well and then ba-BANG:
wodim: Cannot fixate disk
What the? Thinking the media was bad, I yanked it out and put a new CD in the drive. Same result. OK, this is getting tiresome. Time to Google:
http://www.google.com/search?sourceid=chrome&ie=UTF-8&q=wodim:+Cannot+fixate+disk
Surfing around does not yield much usable information; however, one post hinted at a drive or BIOS issue. I rebooted and checked the BIOS..nothing far from standard there. So I figured I'd run cdrecord again using the -dummy switch that means "do everything the burn will do, except turn off the laser." So I did this, again using another CD. If you're counting, that's three.
I first ran a scanbus:
[sodo@computer ~]$ cdrecord -scanbus
scsibus2: 2,0,0
200) 'HL-DT-ST' 'DVD+-RW GH50N ' 'B103' Removable CD-ROM 2,1,0
201) * 2,2,0
202) * 2,3,0
203) * 2,4,0
204) * 2,5,0
205) * 2,6,0
206) * 2,7,0
207) *
Then I ran cdrecord with the dummy parameter:
[sodo@computer ~]$ cdrecord -v -tao driveropts=burnfree -dummy -dev=2,0,0 Downloads/Fedora-14-i686-Live-Desktop.iso
TOC Type: 1 = CD-ROM
wodim: Operation not permitted.
Warning: Cannot raise RLIMIT_MEMLOCK limits.
scsidev: '2,0,0'
scsibus: 2 target: 0 lun: 0
WARNING: the deprecated pseudo SCSI syntax found as device specification.
Support for that may cease in the future versions of wodim. For now, the device will be mapped to a block device file where possible.
Run "wodim --devices" for details.
Linux sg driver version: 3.5.27
Wodim version: 1.1.11
Driveropts: 'burnfree'
SCSI buffer size: 64512
Device type : Removable CD-ROM
Version : 5
Response Format: 2
Capabilities : Vendor_info : 'HL-DT-ST'
Identification : 'DVD+-RW GH50N '
Revision : 'B103'
Device seems to be: Generic mmc2 DVD-R/DVD-RW.
Current: 0x0009 (CD-R)
Profile: 0x0012 (DVD-RAM)
Profile: 0x0011 (DVD-R sequential recording)Profile: 0x0015 (DVD-R/DL sequential recording)
Profile: 0x0016 (DVD-R/DL layer jump recording)
Profile: 0x0014 (DVD-RW sequential recording) Profile: 0x0013 (DVD-RW restricted overwrite)
Profile: 0x001A (DVD+RW) Profile: 0x001B (DVD+R)
Profile: 0x002B (DVD+R/DL) Profile: 0x0010 (DVD-ROM)
Profile: 0x0009 (CD-R) (current) Profile: 0x000A (CD-RW) Profile: 0x0008 (CD-ROM)
Profile: 0x0002 (Removable disk)
Using generic SCSI-3/mmc CD-R/CD-RW driver (mmc_cdr).
Driver flags : MMC-3 SWABAUDIO BURNFREE
Supported modes: TAO PACKET SAO SAO/R96P SAO/R96R RAW/R96R
Drive buf size : 1053696 = 1029 KB
Beginning DMA speed test. Set CDR_NODMATEST environment variable if device communication breaks or freezes immediately after that.
Drive DMA Speed: 16168 kB/s 91x CD 11x DVD
FIFO size : 4194304 = 4096 KB
Track 01: data 686 MB
Total size: 787 MB (78:03.12) = 351234 sectors
Lout start: 788 MB (78:05/09) = 351234 sectors
Current Secsize: 2048
ATIP info from disk:
Indicated writing power: 5 Is not unrestricted Is not erasable Disk sub type: Medium Type A, high Beta category (A+) (3) ATIP start of lead in: -11634 (97:26/66)
ATIP start of lead out: 359846 (79:59/71)
Disk type: Short strategy type (Phthalocyanine or similar)
Manuf. index: 3
Manufacturer: CMC Magnetics Corporation
Blocks total: 359846 Blocks current: 359846 Blocks remaining: 8612
Speed set to 8468 KB/s
Starting to write CD/DVD at speed 48.0 in dummy TAO mode for single session.
Last chance to quit, starting dummy write in 0 seconds. Operation starts.
Waiting for reader process to fill input buffer ... input buffer ready.
Starting new track at sector: 0
Track 01: 686 of 686 MB written (fifo 100%) [buf 91%] 49.9x.
Track 01: Total bytes read/written: 719323136/719323136 (351232 sectors).
Writing time: 143.394s
Average write speed 32.7x.
Min drive buffer fill was 87%
Fixating...
WARNING: Some drives don't like fixation in dummy mode.
Fixating time: 22.123s
wodim: fifo had 11331 puts and 11331 gets.
wodim: fifo was 0 times empty and 6563 times full, min fill was 85%
OK! So this time, the "fake" burn worked! That's promising. I then ran the "real" burn (same command without the -dummy parameter) and prayed that it would work:
[sodo@computer ~]$ cdrecord -v -tao driveropts=burnfree -dev=2,0,0 Downloads/Fedora-14-i686-Live-Desktop.iso
...
Starting to write CD/DVD at speed 48.0 in real TAO mode for single session.
Last chance to quit, starting real write in 0 seconds. Operation starts.
Waiting for reader process to fill input buffer ... input buffer ready.
Performing OPC...
Starting new track at sector: 0
Track 01: 686 of 686 MB written (fifo 100%) [buf 91%] 49.7x.
Track 01: Total bytes read/written: 719323136/719323136 (351232 sectors).
Writing time: 149.247s
Average write speed 31.4x.
Min drive buffer fill was 87%
Fixating...
Fixating time: 22.165s
wodim: fifo had 11331 puts and 11331 gets.
wodim: fifo was 0 times empty and 6552 times full, min fill was 84%.
Ho HO! It worked!! Fabulous. But why?
It seems I made two changes that could have an effect:
1) I rebooted the computer
2) I used a different disc
My bet is on #2. But if you think differently, let me know. I'm just glad to having a working process for burning ISOs to a CD!
Cheers,
TAG
